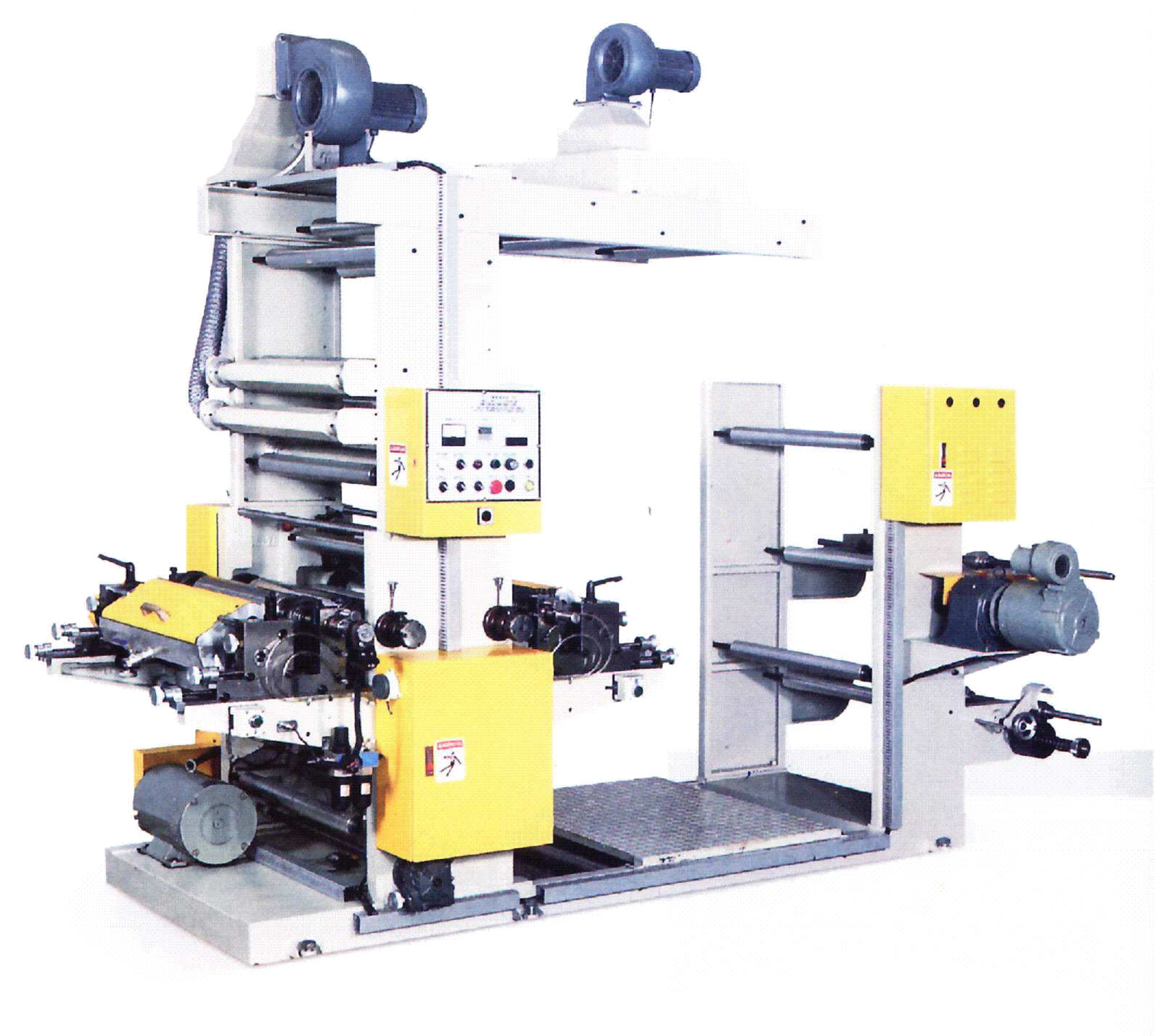

| ПЕЧАТНАЯ МАШИНА СЕРИИ CH2 ФЛЕКСОГРАФИЧЕСКАЯ ПЕЧАТНАЯ МАШИНА (ДВУХ ЦВЕТНАЯ) |
| Ширина печати | 600mm | 800mm | 1000mm | 1200mm | 1400mm | 1600mm | |||
| Printing length | 7.5"-40"/7.5"-50"/7.5"-60"/7.5"-70"/7.5"-80" | ||||||||
| Printing possibility | PC:2+0;1+1 | ||||||||
| Printing plate lifting system | Pneumatic/Hydraulic press control | ||||||||
| Механическая | 80m/min | ||||||||
| Printing speed | 60m/min | ||||||||
| Anilox cylinder | 80DK-120DK(Germany) | ||||||||
| Register precision | Longitude:±0.25mm Transverse:±0.25mm | ||||||||
| Rewinder/Unwinder DIA | ø 600mm | ||||||||
| Master motor | 1.5KW | 1.5KW | 2.2KW | 3.0KW | 3.7KW | 4.0KW | |||
| Unwinder motor | 0.75KW | 0.75KW | 1.1KW | 1.1KW | 1.5KW | 1.5KW | |||
| Rewinder motor | 1.1KW | 1.1KW | 1.5KW | 6KW | 7KW | 8KW | |||
| Electrical header | 3KW | 4KW | 5KW | 2KW | 2.25KW | 3KW | |||
| Blower of header | 1.1KW | 1.1KW | 1.5KW | 2.2KW | 2.2KW | 3KW | |||
| Inking motor | 1/4HP | 1/4HP | 1/4HP | 1/2HP | 1/2HP | 1/2HP | |||
| Master frequency converter | 2.2KW | 3.0KW | 3.7KW | 4.0KW | 5.5KW | 5.5KW | |||
| Bearing | Japan(NSK) | ||||||||
| Unilateral bearing | ASNU(Germany) | ||||||||
| Dimension (L×W×H) | 1.9m × 1.7m × 2.5m | 1.9m × 1.9m × 2.5m | 1.9m × 2.1m × 2.5m | 1.9m × 2.35m × 2.5m | 1.9m × 2.6m × 2.6m | 1.9m × 2.9m × 2.6m | |||
| Weight | 2000Kg | 2200 Kg | 2450 Kg | 2700 Kg | 3000 Kg | 3350 Kg | |||
| Master power | 8KW | 5KW | 10KW | 14KW | 17KW | 19KW | |||
